EP300 3-Ply High Abrasion Rubber Conveyor Belt 800mm/1000mm/1200mm Width for Mining Coal
Through measures such as lightweighting the conveyor belt body,improving rubber elasticity and reducingthe rubber friction coefficient,the running resistance caused by the conveyor device on the belt surfaceduring the operation of the conveyor belt is greatly reduced,and a reasonable transmission friction coefficientis achieved to save electricity by 10~15%effect.The surface covering layer has high elasticity and excellentwear resistance,making the conveyor belt wear-resistant and impact-resistant,and extending its service life.Itis suitable for medium and long-distance.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

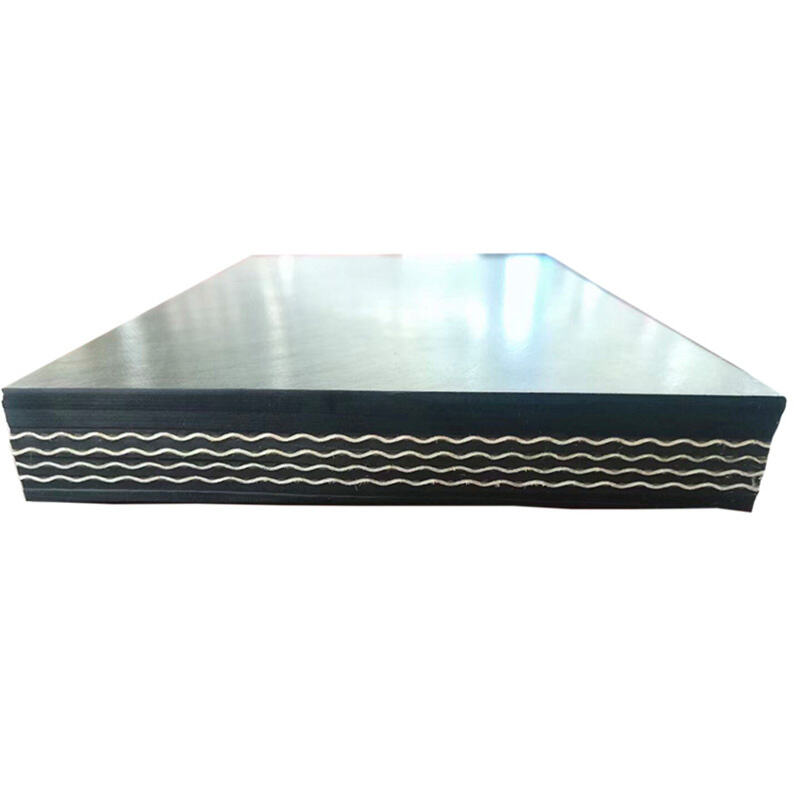

This wear-resistant rubber conveyor belt is designed to operate seamlessly under extreme conditions, ensuring consistent performance even in the harshest industrial settings. Its robust construction includes a multi-layered core that enhances tensile strength and flexibility, allowing it to withstand heavy loads without compromising durability. The specialized high-abrasion-resistant rubber coating not only protects against surface wear but also prevents material build-up, reducing the risk of blockages and improving operational efficiency.
In addition to its superior physical properties, this conveyor belt offers excellent resistance to oils, chemicals, and temperature variations, making it suitable for diverse applications across industries. Whether transporting sharp-edged ores in mining operations or handling abrasive materials like sand and gravel, this belt ensures minimal slippage and maximum load stability. Its smooth, energy-efficient design reduces power consumption, contributing to lower operational costs over time.
Maintenance is hassle-free thanks to its self-cleaning properties and resistance to cuts and gouges. The belt's adaptability to various conveyor systems further enhances its versatility, providing users with a customizable solution tailored to their specific needs. For businesses seeking long-term reliability and cost-effectiveness, this wear-resistant rubber conveyor belt stands as an indispensable asset, delivering unmatched performance and peace of mind in demanding environments.

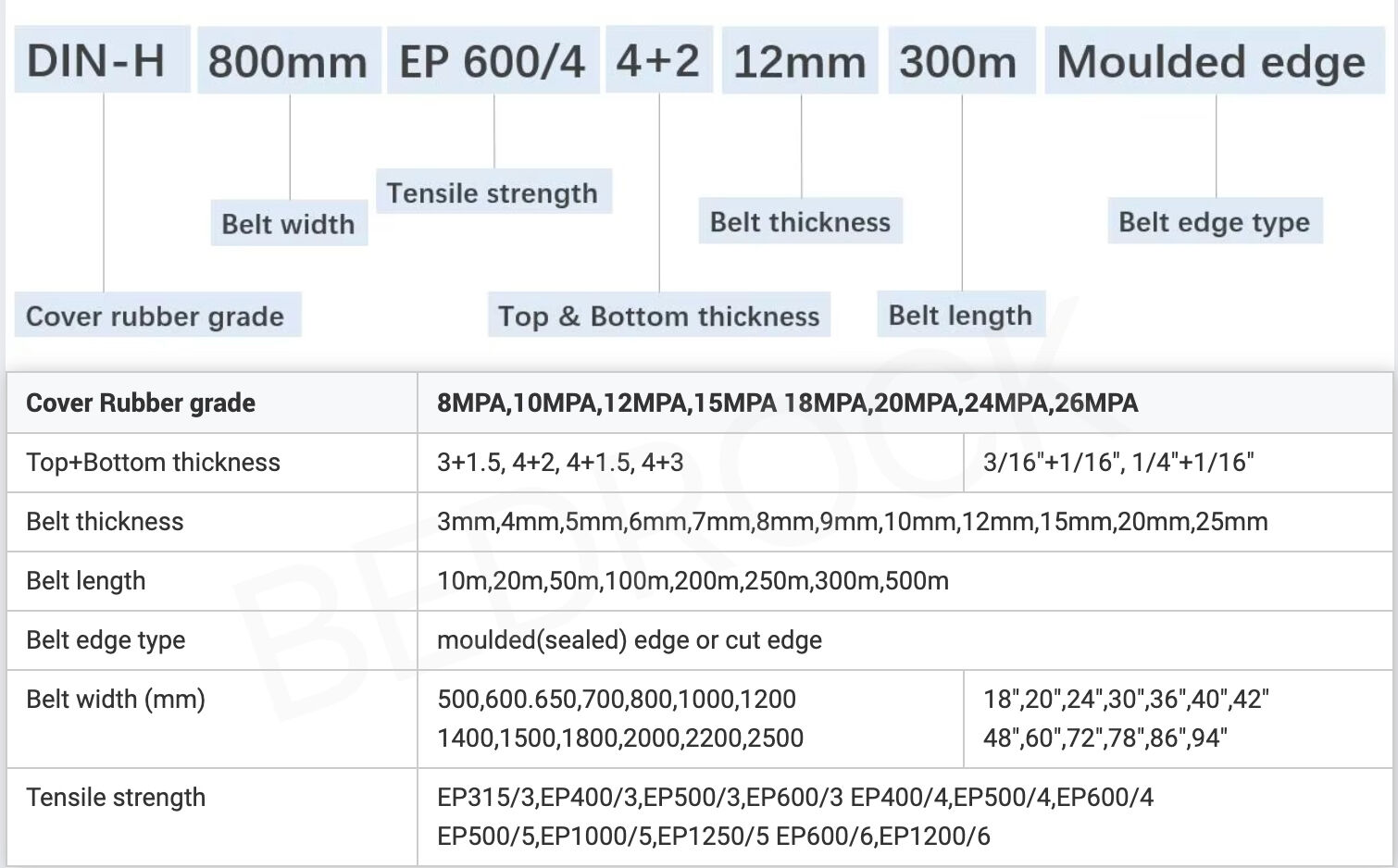

Specifications
| Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA | |
| Top+Bottom thickness | 3+1.5,4+2,4+1.5,4+3 | 3/16"+1/16",1/4"+1/16" |
| Belt thickness | 3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm | |
| Belt length | 10m,20m,50m,100m,200m,250m,300m,500m | |
| Belt edge type | moulded(sealed) edge or cut edge | |
| Belt width (mm) | 500,600,650,700,800,1000,12001400,1500,1800,2000,2200,2500 | 18",20",24",30",36",40",42"48",60",72",78",86",94" |
| Tensile strength | EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6 | |
Applications

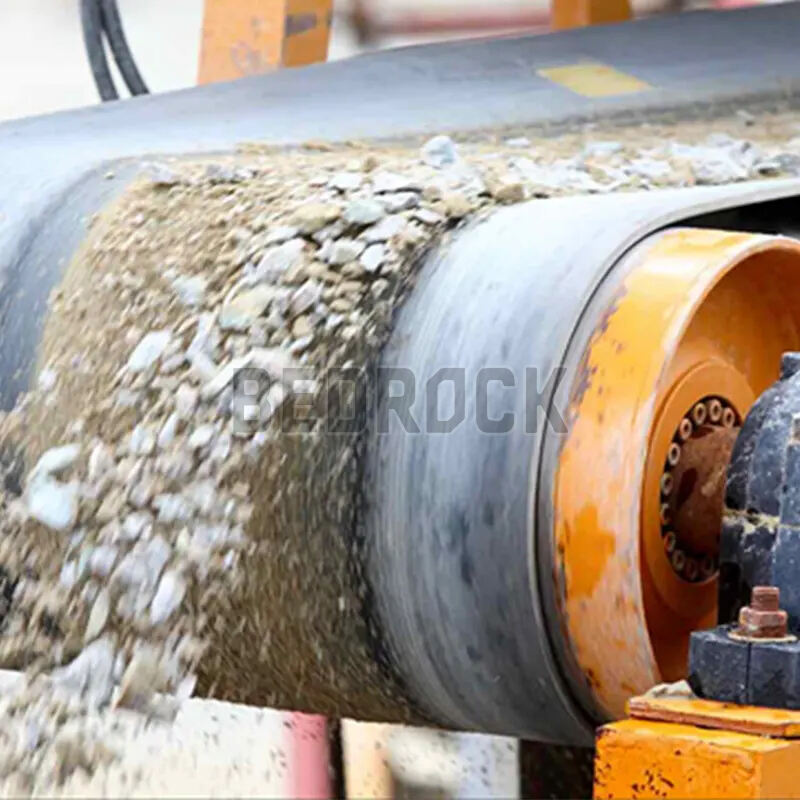

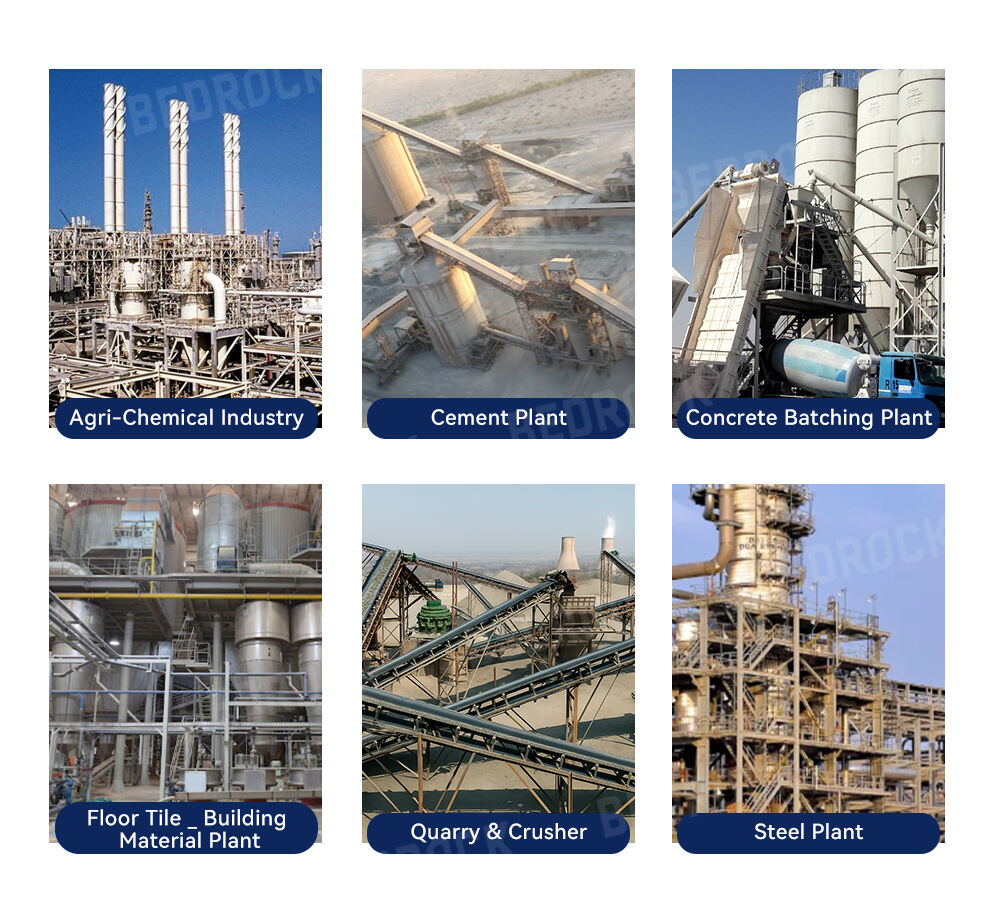

Material transportation in mining,docks,electric power,metallurgy,chemical industry,coal and other industries.
Advantages
1. Features a specialized high-wear-resistant rubber cover layer
2. Boasts a robust belt structure with excellent elasticity in the cover layer
3. Effectively reduces overall operational and maintenance costs
4. Specifically engineered for high-abrasion environments
FAQ
1. What are the advantages of your conveyor belts compared to other brands?
1:Targeted Design: Based on years of field experience in Saudi Arabia, we engineer our belt’s ply count and rubber grade to precisely match your application.
2:Localized Service: We provide "hands-on" technical support throughout the entire process—from selection and installation to subsequent optimization—ensuring you achieve optimal results, not just receive a belt.
3:Cost Advantage: We have our own factory, eliminating middlemen. This allows us to offer more competitive prices while guaranteeing quality. We deliver long-term, stable operation, not just a product.
2. Is your conveyor belt under warranty? How long is the warranty period?
We provide clear and fair warranty terms to ensure mutual understanding:
1:A one-year warranty is provided under normal operating conditions (covering issues like delamination and core breakage).
2:Normal wear and tear of the top and bottom cover rubber is excluded.
3:Punctures and cuts caused by external factors are not covered.
Our Hot Vulcanized Jointing Service is covered by a separate one-year warranty. (This warranty excludes issues resulting from mechanical damage, human error, or improper maintenance.)
3. How is the belt splicing handled? Do you provide on-site service?
The splice is the "lifeline" of any conveyor belt, and we treat it with utmost importance. We offer:
1:Professional Hot Vulcanized Splicing Service: Our engineer team uses professional equipment to ensure a splice efficiency of over 90%, achieving a strength nearly equal to the belt itself.
2:On-site Guidance & Execution: We don't just advise; we can dispatch our engineers to your site to ensure the splice is done correctly the first time, preventing the risk of future breakages during operation.
4. What is the service life of the belt?
The service life of a conveyor belt depends on various factors, including material abrasiveness, load capacity, operating environment, and maintenance standards.
Based on our experience serving similar clients in Saudi Arabia, under normal conditions and with proper maintenance, our products are typically designed to last 1-2 years.
Most importantly, through accurate selection and regular maintenance tracking services, we proactively help you avoid abnormal wear, striving to maximize the product's service life and thereby reduce your cost per ton conveyed.
5. What is your response if we encounter a problem with the belt?
We have established a localized rapid response mechanism in Saudi Arabia:
1:Technical Consultation: For any operational queries, we provide remote technical support within 24 hours.
2:Emergency Breakdowns: For critical issues causing downtime, we commit to providing a clear on-site support arrival time and establishing an emergency communication channel.
3:Spare Parts Support: We maintain a local spare parts stock in Saudi Arabia to ensure the rapid supply of critical components.
Our goal is to become your long-term partner, not just a one-time supplier. Therefore, resolving issues quickly is in our mutual interest.
