Industrial Conveyor Belt Manufacturer Price, Heavy Duty Mining EP250 Chevron Rubber Conveyor Belt

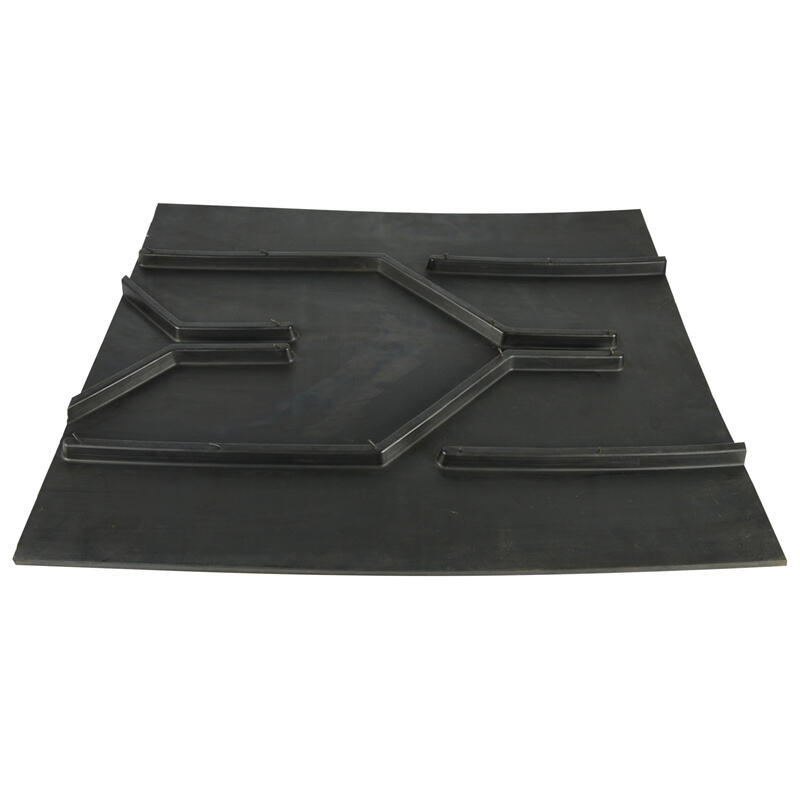

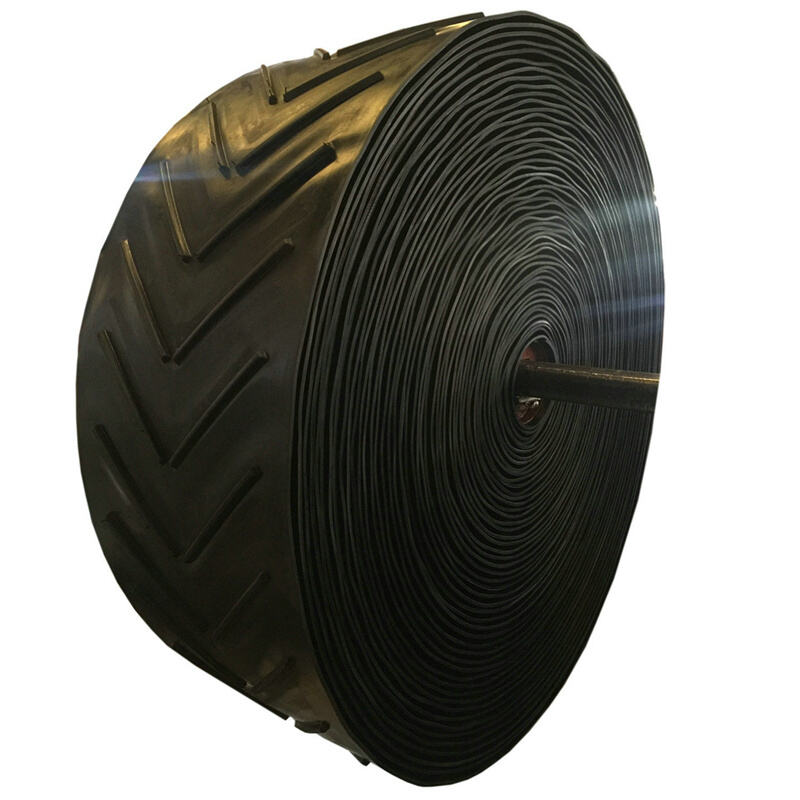

Chevron conveyor belts are constructed with a patterned surface rubber layer, a flat non-working surface rubber layer, and a belt core. The belt patterns can be either open or closed, with each type available in high, medium, or low profiles. These belts are suitable for conveying powdered, granular, and small-bloc materials at inclinations up to 40 degrees, as well as bagged materials.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

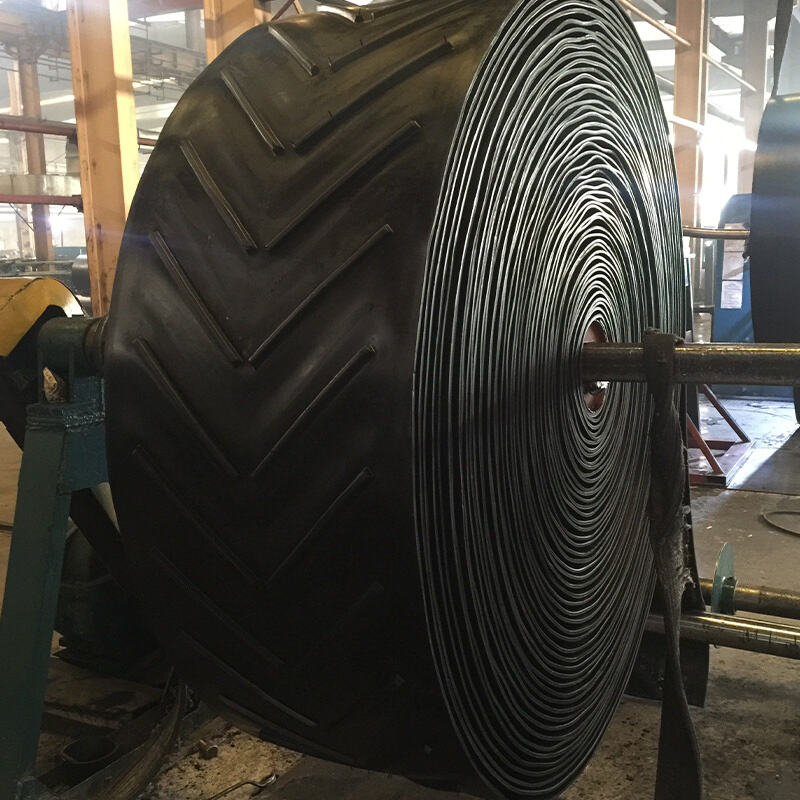

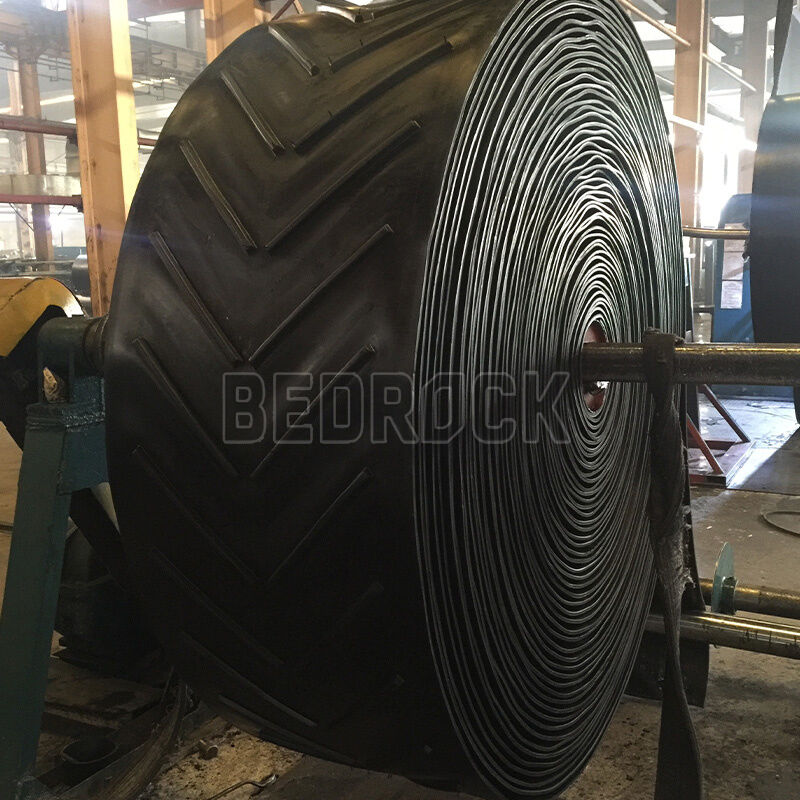

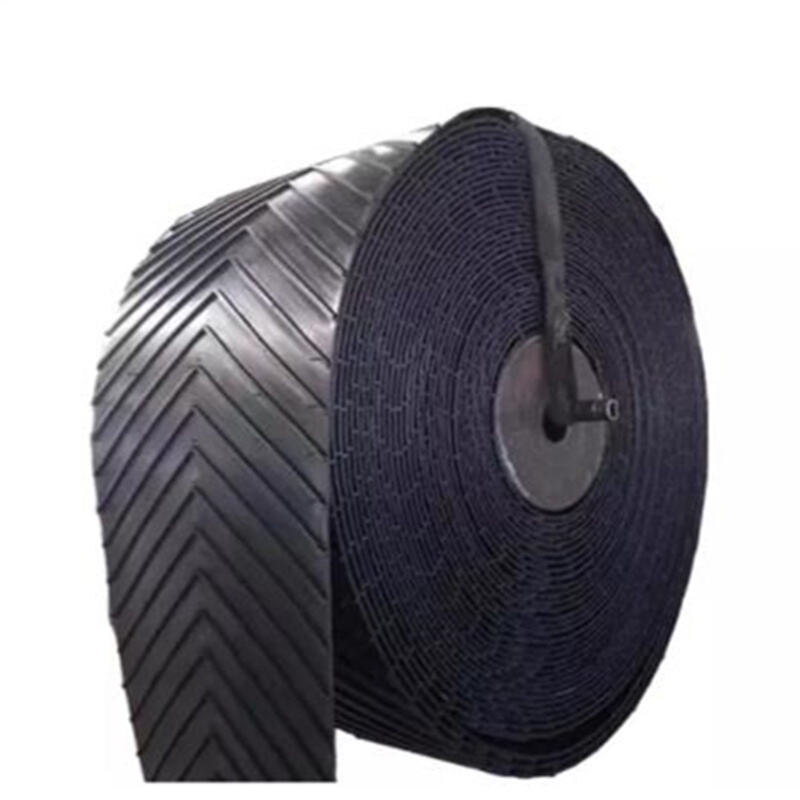

Chevron conveyor belts are engineered as a highly efficient solution for inclined material handling, effectively overcoming the challenges of material rollback and slippage that plague conventional flat belts on steep slopes. Their sophisticated multi-layer construction is key to their superior performance. The system comprises a robust belt core, typically made from durable nylon or polyester canvas, which provides the necessary tensile strength and dimensional stability. The bottom, or non-working surface, features a standard flat rubber layer designed for smooth operation over conveyor idlers. The defining characteristic, however, is the top working surface, which is molded with a continuous, integrally vulcanized chevron (V-shaped) pattern. This patterned surface creates a physical barrier that securely holds materials in place during ascent.

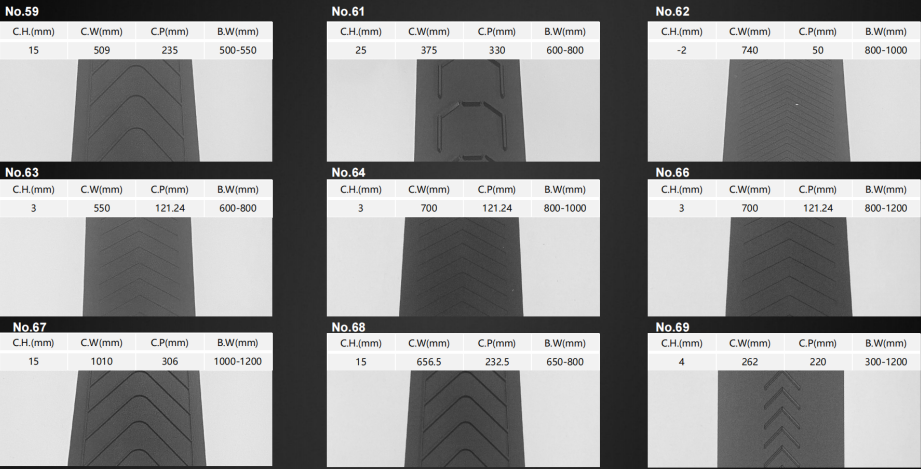

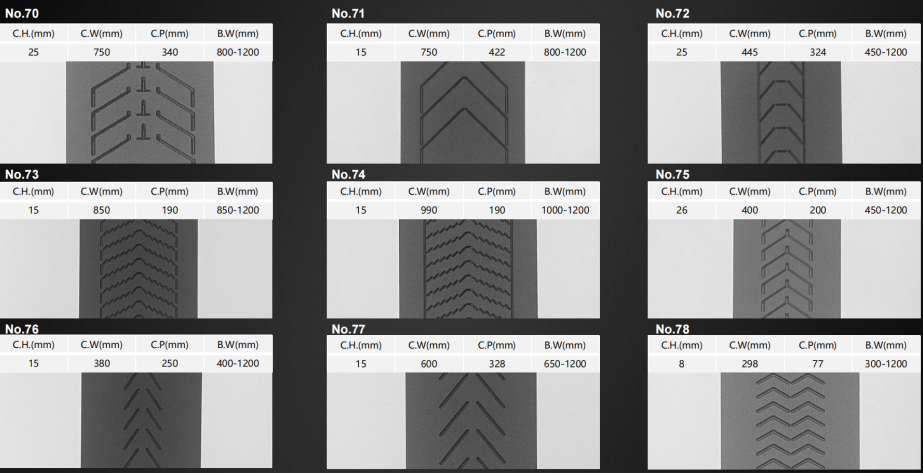

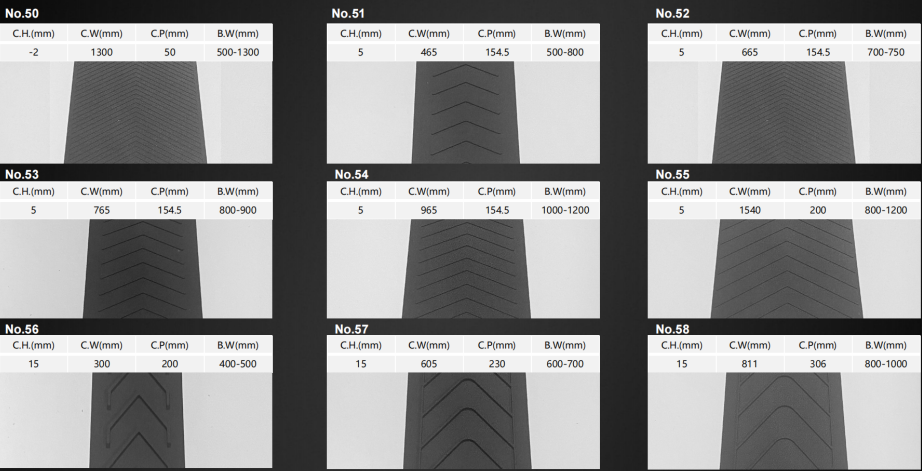

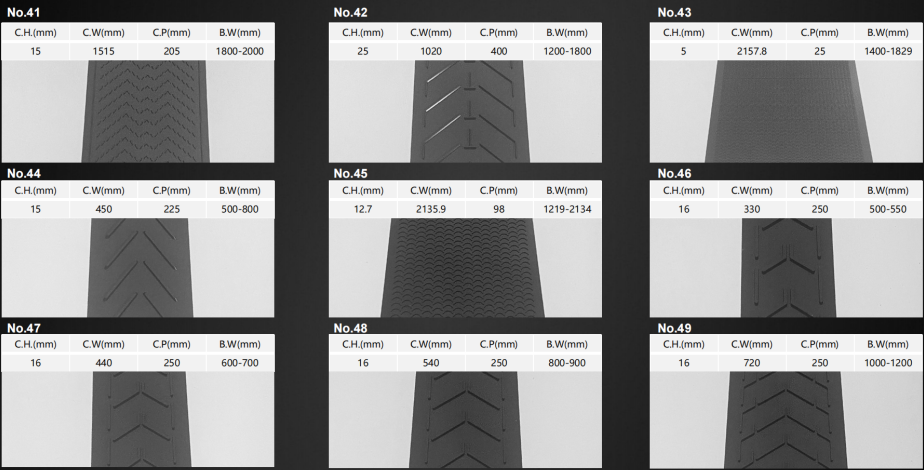

The design of these patterns is highly versatile to suit various material characteristics and inclination angles. Patterns are broadly classified into open type (suitable for general materials) and closed type (ideal for finer powders), with each available in High, Medium, and Low profiles. The profile height is directly correlated to the maximum achievable angle; higher profiles provide greater containment for steeper inclinations, while lower profiles are optimized for gentler slopes or smaller materials.
This specialized design makes Chevron belts exceptionally capable of handling a wide range of materials, including powdered, granular, and small-block materials such as coal, sand, gravel, and fertilizer on inclinations of up to 40 degrees. Furthermore, they are equally effective for transporting bagged materials, providing the necessary friction to prevent packages from sliding backward.
In summary, the primary advantages of Chevron conveyor belts are their ability to maximize conveying efficiency on steep inclines, prevent material spillage and waste, and enable a more compact conveyor system layout by reducing the required horizontal space. They are an indispensable asset in industries like mining, agriculture, bulk port handling, and construction, offering a reliable and cost-effective solution for optimized inclined conveying.
Specifications
| Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA 18MPA,20MPA,24MPA,26MPA | |
| Top+Bottom thickness | 3+1.5,4+2,4+1.5,4+3 | 3/16"+1/16",1/4"+1/16" |
| Belt thickness | 3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,15mm,20mm,25mm | |
| Belt length | 10m,20m,50m,100m,200m,250m,300m,500m | |
| Belt edge type | moulded(sealed) edge or cut edge | |
| Belt width (mm) | 500,600,650,700,800,1000,12001400,1500,1800,2000,2200,2500 | 18",20",24",30",36",40",42"48",60",72",78",86",94" |
| Tensile strength | EP315/3,EP400/3,EP500/3,EP600/3 EP400/4,EP500/4,EP600/4EP500/5,EP1000/5,EP1250/5 EP600/6,EP1200/6 | |
Applications
Engineered for steep incline conveyance, this product features a unique corrugated surface that effectively prevents material spillage. It is particularly suitable for conveying bulk materials such as coal, sand, gravel, and fertilizers, maintaining stable operation even at maximum 40-degree inclines. Widely used in material lifting systems across mining, port, power, and construction industries.
Advantages
1. Exceptional steep-angle conveying capability
2. Wide range of material adaptability
3. Optimized spatial layout and energy-saving benefits
4. Robust durability and high reliability
FAQ
1. What are the advantages of your conveyor belts compared to other brands?
1:Targeted Design: Based on years of field experience in Saudi Arabia, we engineer our belt’s ply count and rubber grade to precisely match your application.
2:Localized Service: We provide "hands-on" technical support throughout the entire process—from selection and installation to subsequent optimization—ensuring you achieve optimal results, not just receive a belt.
3:Cost Advantage: We have our own factory, eliminating middlemen. This allows us to offer more competitive prices while guaranteeing quality. We deliver long-term, stable operation, not just a product.
2. Is your conveyor belt under warranty? How long is the warranty period?
We provide clear and fair warranty terms to ensure mutual understanding:
1:A one-year warranty is provided under normal operating conditions (covering issues like delamination and core breakage).
2:Normal wear and tear of the top and bottom cover rubber is excluded.
3:Punctures and cuts caused by external factors are not covered.
Our Hot Vulcanized Jointing Service is covered by a separate one-year warranty. (This warranty excludes issues resulting from mechanical damage, human error, or improper maintenance.)
3. How is the belt splicing handled? Do you provide on-site service?
The splice is the "lifeline" of any conveyor belt, and we treat it with utmost importance. We offer:
1:Professional Hot Vulcanized Splicing Service: Our engineer team uses professional equipment to ensure a splice efficiency of over 90%, achieving a strength nearly equal to the belt itself.
2:On-site Guidance & Execution: We don't just advise; we can dispatch our engineers to your site to ensure the splice is done correctly the first time, preventing the risk of future breakages during operation.
4. What is the service life of the belt?
The service life of a conveyor belt depends on various factors, including material abrasiveness, load capacity, operating environment, and maintenance standards.
Based on our experience serving similar clients in Saudi Arabia, under normal conditions and with proper maintenance, our products are typically designed to last 1-2 years.
Most importantly, through accurate selection and regular maintenance tracking services, we proactively help you avoid abnormal wear, striving to maximize the product's service life and thereby reduce your cost per ton conveyed.
5. What is your response if we encounter a problem with the belt?
We have established a localized rapid response mechanism in Saudi Arabia:
1:Technical Consultation: For any operational queries, we provide remote technical support within 24 hours.
2:Emergency Breakdowns: For critical issues causing downtime, we commit to providing a clear on-site support arrival time and establishing an emergency communication channel.
3:Spare Parts Support: We maintain a local spare parts stock in Saudi Arabia to ensure the rapid supply of critical components.
Our goal is to become your long-term partner, not just a one-time supplier. Therefore, resolving issues quickly is in our mutual interest.
