New Supply Unloading Warehouse Sidewall Heat Resistant Adjustable Speed Rubber Conveyor Belt for Manufacturing Plant

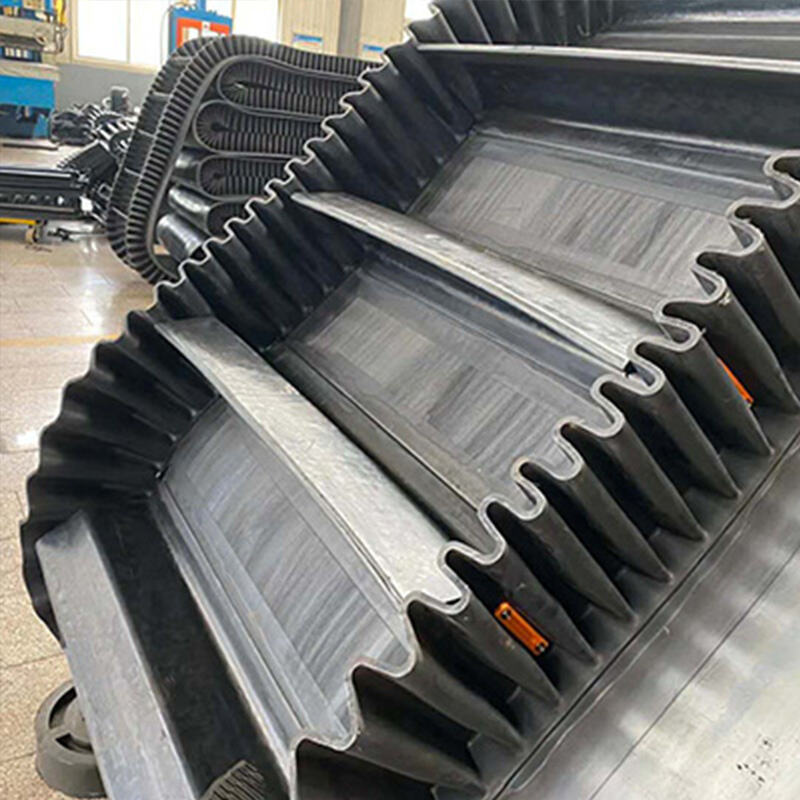

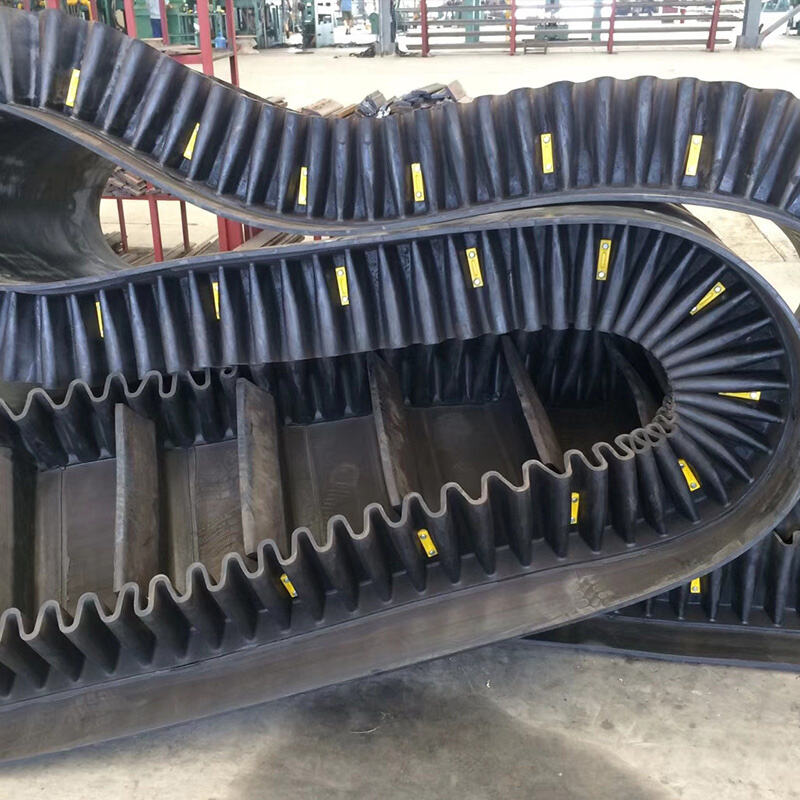

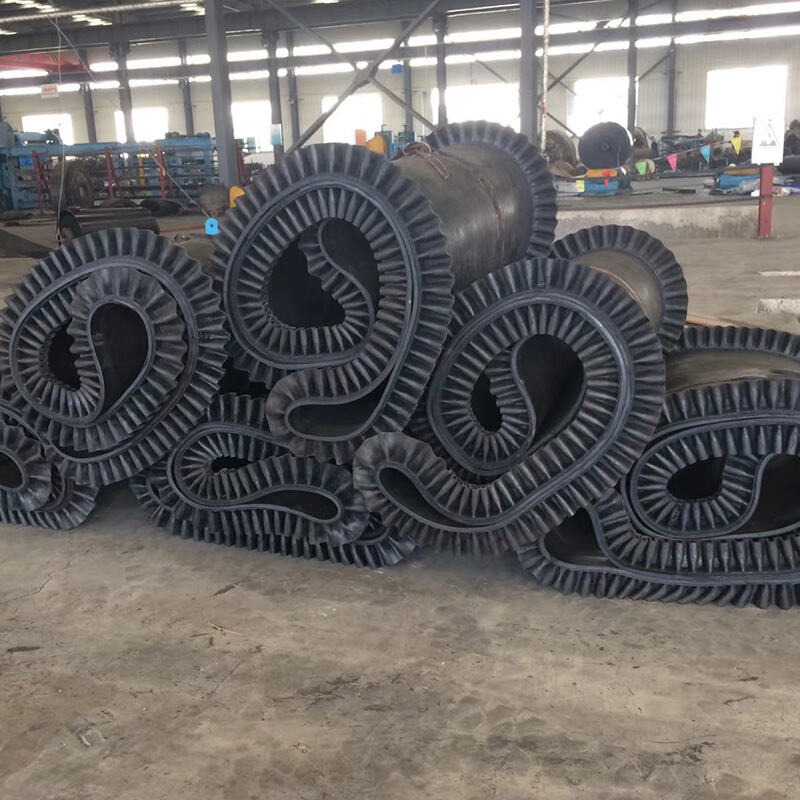

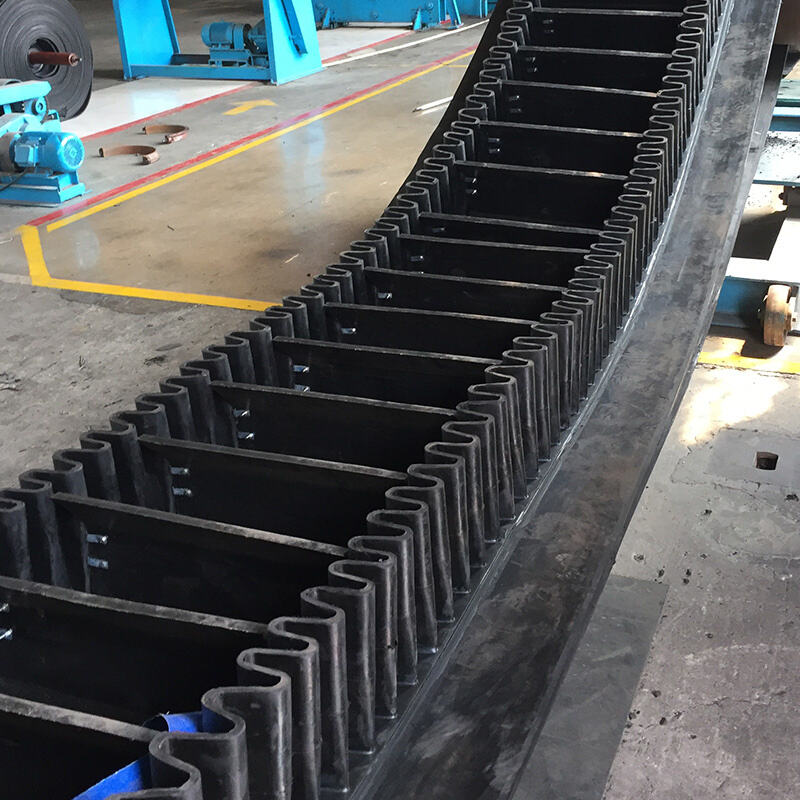

The Sidewall Conveyor Belt is a specialized conveyor belt featuring continuous or intermittent corrugated side walls fixed to the flat base belt edges through vulcanization or similar methods. It can be equipped with transverse partitions as needed. This design enables material transportation at steep angles or even vertically, significantly reducing space requirements and equipment costs.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description
The Sidewall conveyor belt represents a groundbreaking advancement in bulk material handling, effectively overcoming the traditional constraints of standard conveyor belts when it comes to inclination angles. Its innovative design incorporates continuous corrugated rubber sidewalls that are firmly attached to both sides of a high-strength rubber base through precise vulcanization techniques, with the option to add various transverse partitions. This distinctive setup forms a dependable "box-type" conveying system that securely holds materials, allowing for smooth and uninterrupted transport from horizontal to inclined and even vertical positions, reaching up to 90 degrees. The product's remarkable performance is evident in several ways. Firstly, its exceptional ability to save space is noteworthy, as it replaces conventional multi-stage conveying systems with vertical lifting, significantly reducing the required floor area and equipment costs. Secondly, the combined effect of wave-shaped baffles and transverse partitions ensures that materials remain contained even at steep angles, facilitating efficient and environmentally friendly material transfer while minimizing waste and dust pollution. Furthermore, the base belt is constructed with steel cables or high-quality canvas as its core material, offering outstanding tensile strength and durability. This sturdy design allows the conveyor belt to endure challenging working conditions.
Specifications
| No | Item | Data |
| 1 | Cover Rubber grade | 8MPA,10MPA,12MPA,15MPA18MPA,20MPA,24MPA,26MPA |
| 2 | Belt width (mm) | 400,500,600,650,700,900,800,1000,12001400,1500,1600,1800,2000,2200,2500 |
| 3 | Tensile strength | EP200/2,EP315/2,EP315/3,EP400/3,EP500/3,EP600/3,EP400/4,EP500/4,EP630/4,EP800/4,EP1000/4,EP500/5,EP600/5,EP750/5,EP1000/5,EP1250/5EP600/6,EP1200/6 |
| 4 | Top+Bottom thickness | 3+1.5,4+2,4+1.5,4+3,5+1.5,6+2,7+2,8+2 |
| 5 | Belt thickness | 4mm-25mm |
| 6 | Belt length | 50m,100m,200m,250m,300m |
| 7 | Belt edge type | moulded(rubbered) edge or cut edge |
| 8 | Surface | smooth,chevron,rough top |
Applications
This belt is extensively employed in sectors that handle bulk materials at high angles, enabling its use in diverse fields such as mining, power generation, ports and terminals, building materials, and the chemical and food industries.
Advantages
1. Ultimate space utilization
2. Outstanding environmental and economic benefits
3. Unparalleled flexibility in conveying layout
4. High efficiency and large capacity
5. Stable operation and low maintenance
FAQ
1. What are the advantages of your conveyor belts compared to other brands?
1:Targeted Design: Based on years of field experience in Saudi Arabia, we engineer our belt’s ply count and rubber grade to precisely match your application.
2:Localized Service: We provide "hands-on" technical support throughout the entire process—from selection and installation to subsequent optimization—ensuring you achieve optimal results, not just receive a belt.
3:Cost Advantage: We have our own factory, eliminating middlemen. This allows us to offer more competitive prices while guaranteeing quality. We deliver long-term, stable operation, not just a product.
2. Is your conveyor belt under warranty? How long is the warranty period?
We provide clear and fair warranty terms to ensure mutual understanding:
1:A one-year warranty is provided under normal operating conditions (covering issues like delamination and core breakage).
2:Normal wear and tear of the top and bottom cover rubber is excluded.
3:Punctures and cuts caused by external factors are not covered.
Our Hot Vulcanized Jointing Service is covered by a separate one-year warranty. (This warranty excludes issues resulting from mechanical damage, human error, or improper maintenance.)
3. How is the belt splicing handled? Do you provide on-site service?
The splice is the "lifeline" of any conveyor belt, and we treat it with utmost importance. We offer:
1:Professional Hot Vulcanized Splicing Service: Our engineer team uses professional equipment to ensure a splice efficiency of over 90%, achieving a strength nearly equal to the belt itself.
2:On-site Guidance & Execution: We don't just advise; we can dispatch our engineers to your site to ensure the splice is done correctly the first time, preventing the risk of future breakages during operation.
4. What is the service life of the belt?
The service life of a conveyor belt depends on various factors, including material abrasiveness, load capacity, operating environment, and maintenance standards.
Based on our experience serving similar clients in Saudi Arabia, under normal conditions and with proper maintenance, our products are typically designed to last 1-2 years.
Most importantly, through accurate selection and regular maintenance tracking services, we proactively help you avoid abnormal wear, striving to maximize the product's service life and thereby reduce your cost per ton conveyed.
5. What is your response if we encounter a problem with the belt?
We have established a localized rapid response mechanism in Saudi Arabia:
1:Technical Consultation: For any operational queries, we provide remote technical support within 24 hours.
2:Emergency Breakdowns: For critical issues causing downtime, we commit to providing a clear on-site support arrival time and establishing an emergency communication channel.
3:Spare Parts Support: We maintain a local spare parts stock in Saudi Arabia to ensure the rapid supply of critical components.
Our goal is to become your long-term partner, not just a one-time supplier. Therefore, resolving issues quickly is in our mutual interest.
