Heavy Duty Rubber Corrugated Sidewall Conveyor Belt for Coal Mining and Restaurants

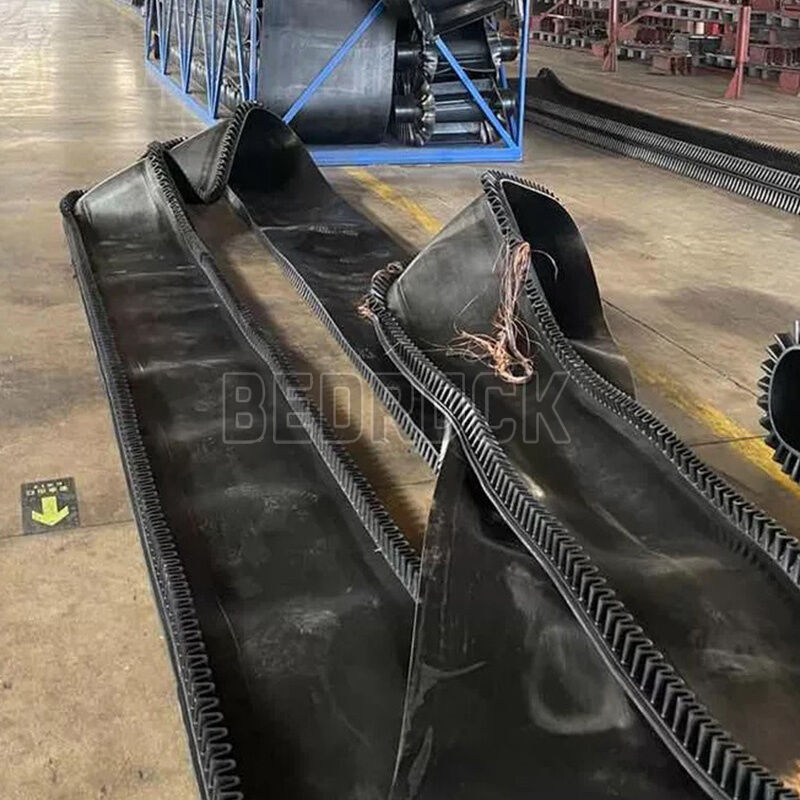

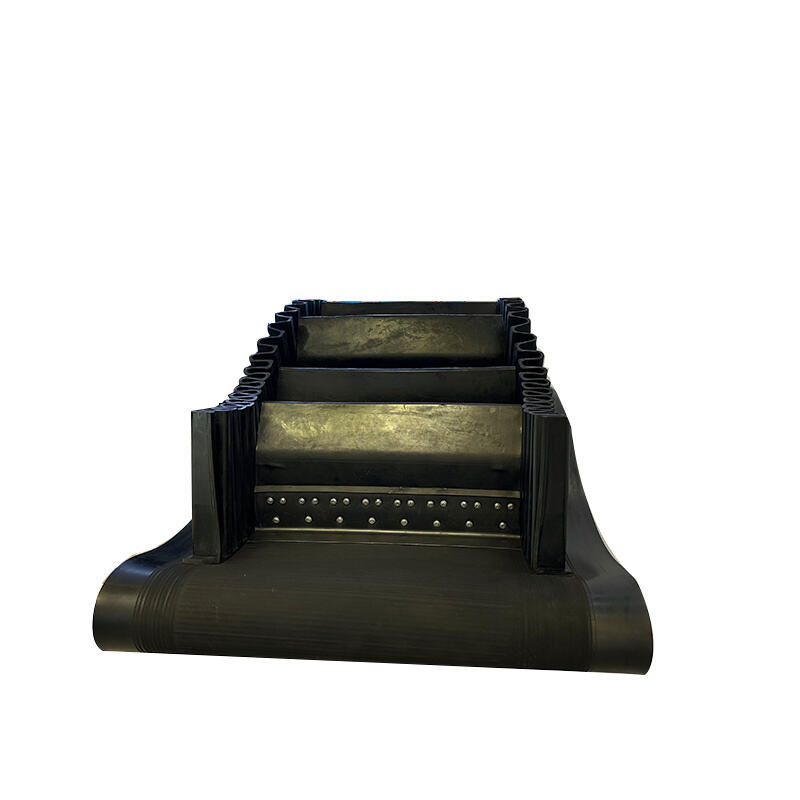

The Sidewall Conveyor Belt is a unique type of conveyor belt that includes continuous or occasional corrugated side walls attached to the flat base belt edges through vulcanization or similar techniques. It can also be fitted with cross partitions if necessary. This configuration allows for the transport of materials at steep angles or even vertically, which greatly minimizes space usage and reduces equipment expenses.
- Description
- Specifications
- Applications
- Advantages
- FAQ
- Recommended Products
Description

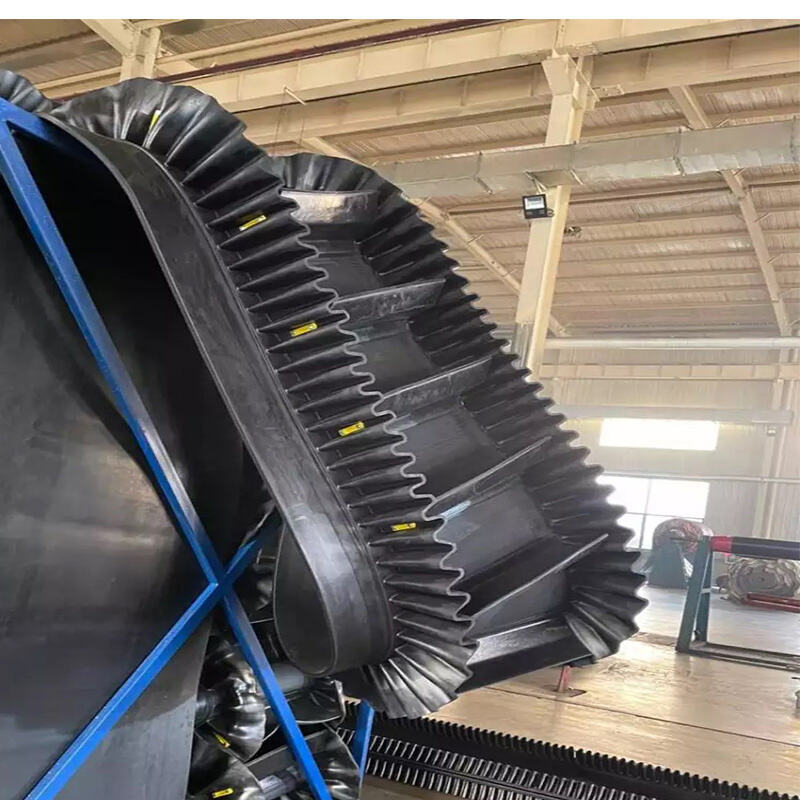

As a revolutionary bulk material handling solution, the Sidewall conveyor belt completely overcomes the traditional limitations of conventional conveyor belts regarding inclination angles. Its core design features continuous corrugated rubber side edges securely bonded to both sides of a high-strength rubber base through precision vulcanization processes, with optional installation of various transverse partitions. This unique configuration creates a reliable "box-type" conveying unit that effectively contains materials, enabling seamless and continuous transportation from horizontal to inclined and even vertical orientations (up to 90 degrees).
The product's exceptional performance is demonstrated through multiple aspects. First, its outstanding space-saving capability stands out, as it replaces traditional multi-stage conveying systems with vertical lifting, significantly reducing floor space and equipment investment. Second, the synergistic interaction between wave-shaped baffles and transverse partitions ensures that materials remain contained even at extreme inclines, achieving efficient and eco-friendly material transfer while minimizing waste and dust pollution. Additionally, the base belt employs steel cables or premium canvas as its core material, providing exceptional tensile strength and durability. This robust design enables the conveyor belt to withstand harsh working conditions.
Specifications
| Belt Width(mm) | ply | Width tolerance(mm) |
| 20 25 30 35 40 45 50 55 60 | 3-4 | +/- 2 |
| 65 70 75 80 90 100 125 | 3-6 | +/- 3 |
| 140 160 180 200 225 | 4-6 | +/- 4 |
| 288 300 315 350 400 450 550 600 | 4-10 | +/- 5 |
Applications
This product is widely used in industries requiring the transportation of bulk materials at steep inclines or vertically, such as mining, power generation, ports and terminals, building materials, chemical, and food industries.
Advantages
1. Large Angle/Vertical Conveying: Maximum 90 degrees, space-saving.
2. High conveying efficiency: continuous conveying, large throughput.
3. Flexible layout: can be arranged horizontally, tilted, curved, vertical combination.
4. Environmental protection and energy saving: closed transportation, reduce dust pollution and material loss.
5. Low operating cost: compact structure, simple maintenance, high overall investment benefit.
FAQ
1. What are the advantages of your conveyor belts compared to other brands?
1:Targeted Design: Based on years of field experience in Saudi Arabia, we engineer our belt’s ply count and rubber grade to precisely match your application.
2:Localized Service: We provide "hands-on" technical support throughout the entire process—from selection and installation to subsequent optimization—ensuring you achieve optimal results, not just receive a belt.
3:Cost Advantage: We have our own factory, eliminating middlemen. This allows us to offer more competitive prices while guaranteeing quality. We deliver long-term, stable operation, not just a product.
2. Is your conveyor belt under warranty? How long is the warranty period?
We provide clear and fair warranty terms to ensure mutual understanding:
1:A one-year warranty is provided under normal operating conditions (covering issues like delamination and core breakage).
2:Normal wear and tear of the top and bottom cover rubber is excluded.
3:Punctures and cuts caused by external factors are not covered.
Our Hot Vulcanized Jointing Service is covered by a separate one-year warranty. (This warranty excludes issues resulting from mechanical damage, human error, or improper maintenance.)
3. How is the belt splicing handled? Do you provide on-site service?
The splice is the "lifeline" of any conveyor belt, and we treat it with utmost importance. We offer:
1:Professional Hot Vulcanized Splicing Service: Our engineer team uses professional equipment to ensure a splice efficiency of over 90%, achieving a strength nearly equal to the belt itself.
2:On-site Guidance & Execution: We don't just advise; we can dispatch our engineers to your site to ensure the splice is done correctly the first time, preventing the risk of future breakages during operation.
4. What is the service life of the belt?
The service life of a conveyor belt depends on various factors, including material abrasiveness, load capacity, operating environment, and maintenance standards.
Based on our experience serving similar clients in Saudi Arabia, under normal conditions and with proper maintenance, our products are typically designed to last 1-2 years.
Most importantly, through accurate selection and regular maintenance tracking services, we proactively help you avoid abnormal wear, striving to maximize the product's service life and thereby reduce your cost per ton conveyed.
5. What is your response if we encounter a problem with the belt?
We have established a localized rapid response mechanism in Saudi Arabia:
1:Technical Consultation: For any operational queries, we provide remote technical support within 24 hours.
2:Emergency Breakdowns: For critical issues causing downtime, we commit to providing a clear on-site support arrival time and establishing an emergency communication channel.
3:Spare Parts Support: We maintain a local spare parts stock in Saudi Arabia to ensure the rapid supply of critical components.
Our goal is to become your long-term partner, not just a one-time supplier. Therefore, resolving issues quickly is in our mutual interest.
